Block Type Expansion Valves

As a basic manufacturer of expansion devices, our in-house research & development and design center utilizes the latest advanced designing software and precise measuring equipment to ensure product integrity and quality.



  • valve700px_location1jpg-1

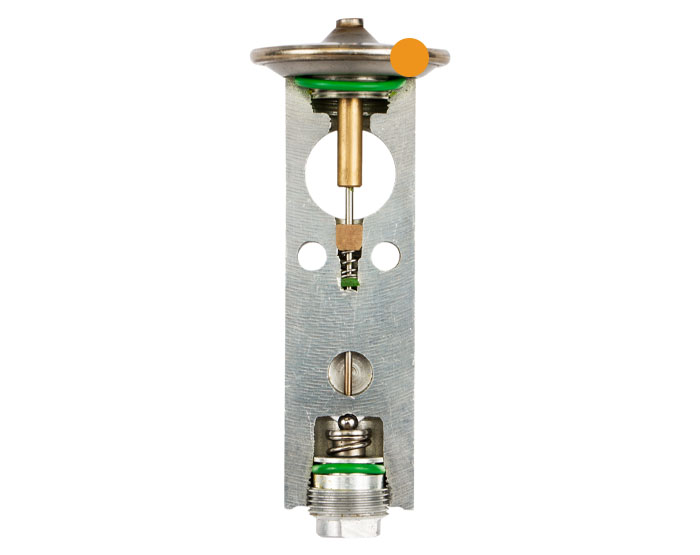

    Power Element (Diaphragm)

  • valve700px_location2ajpg

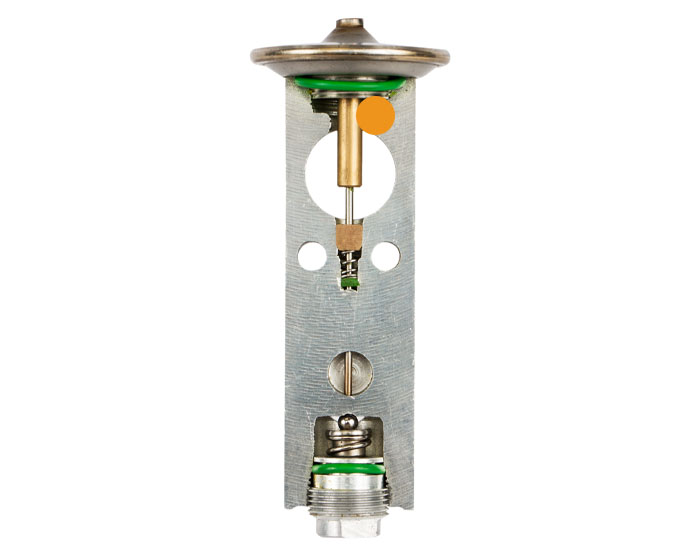

    Equalizing Pressure Point

  • valve700px_location3ajpg

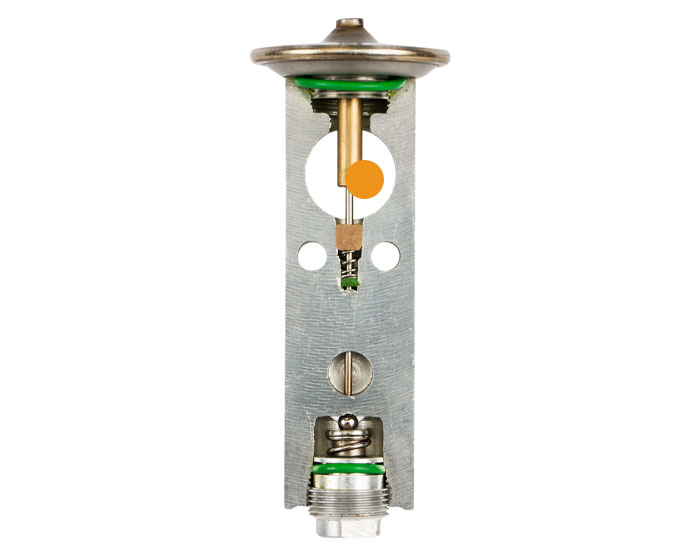

    Temperature Sensing Element

  • valve700px_location4ajpg

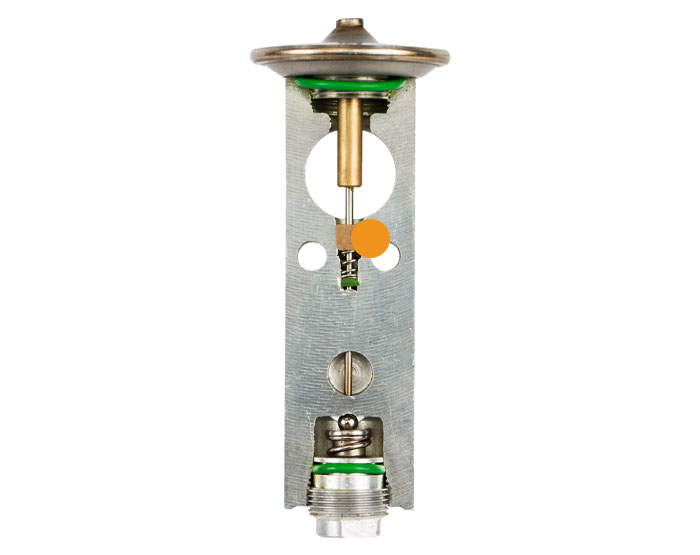

    Pushrod Upper Guide and Seal Plug

  • valve700px_location5ajpg

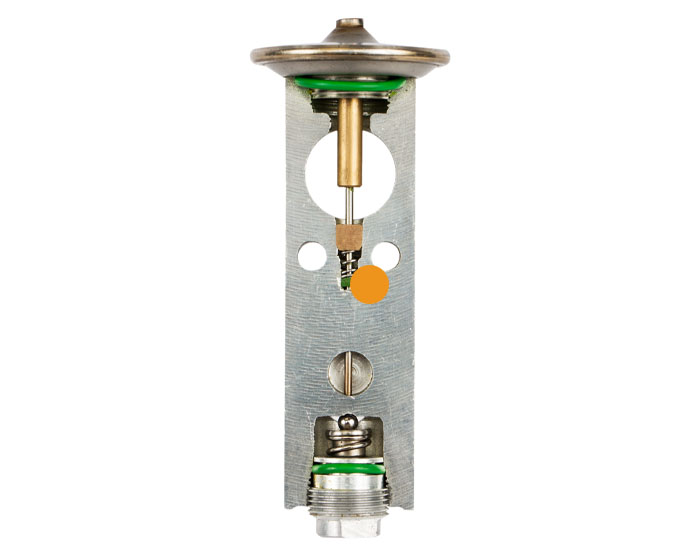

    Pushrod Seal

  • valve700px_location6ajpg

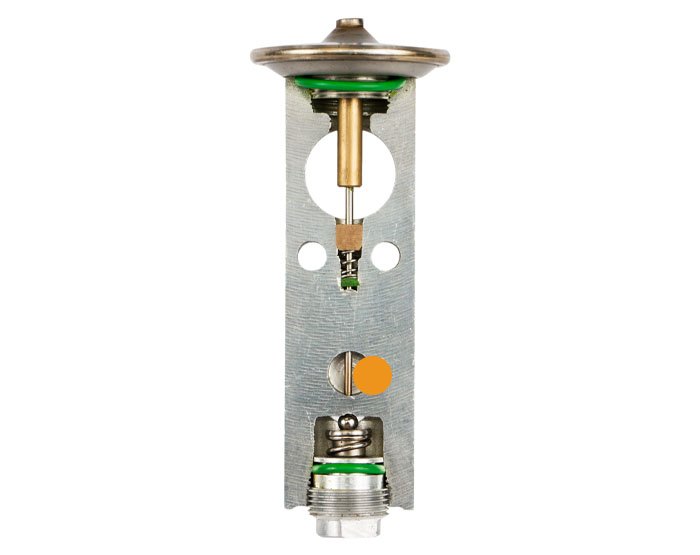

    Pushrod

  • valve700px_location7ajpg

    Ball and Seat

  • valve700px_location8ajpg

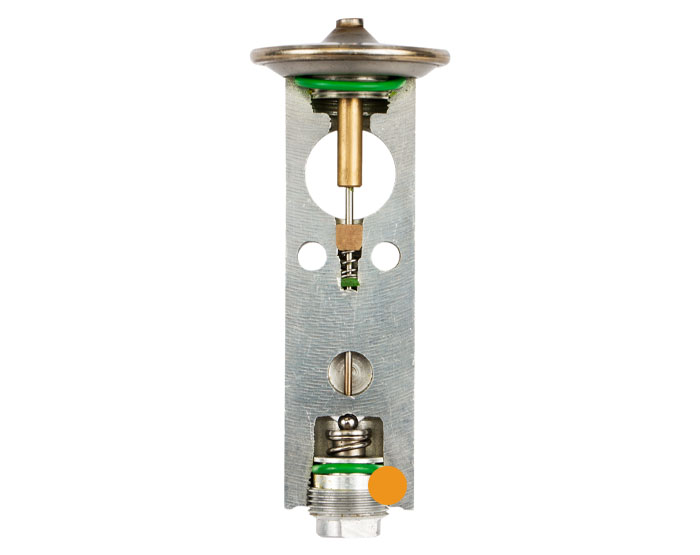

    Superheat Spring

  • valve700px_location9ajpg

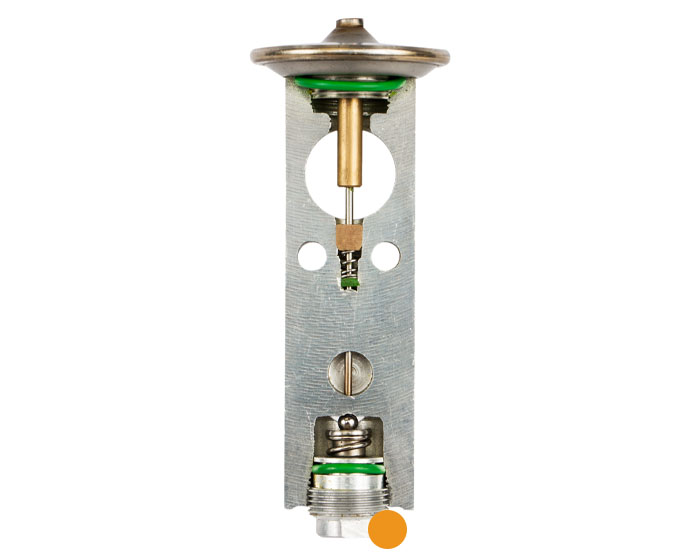

    Retainer Plug

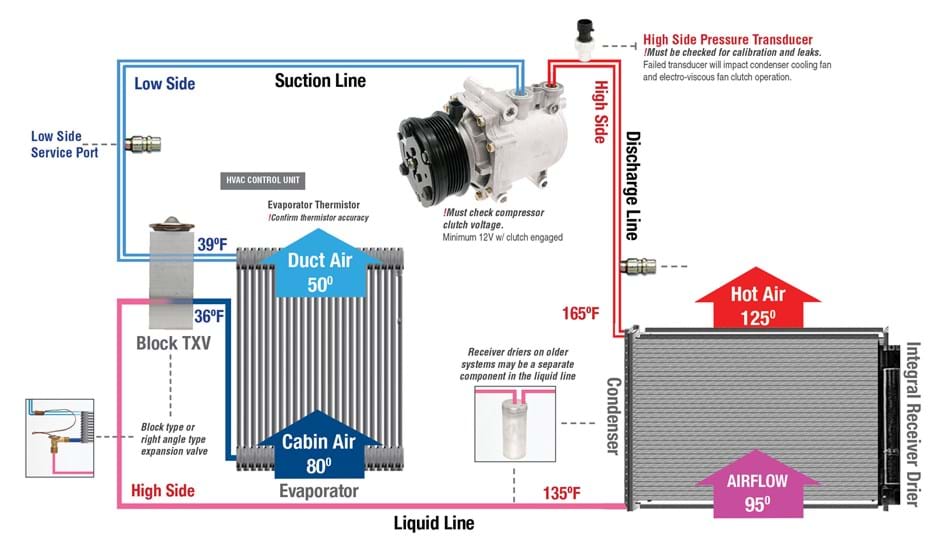

Typical TXV System

TXV System Diagram_1.jpg
